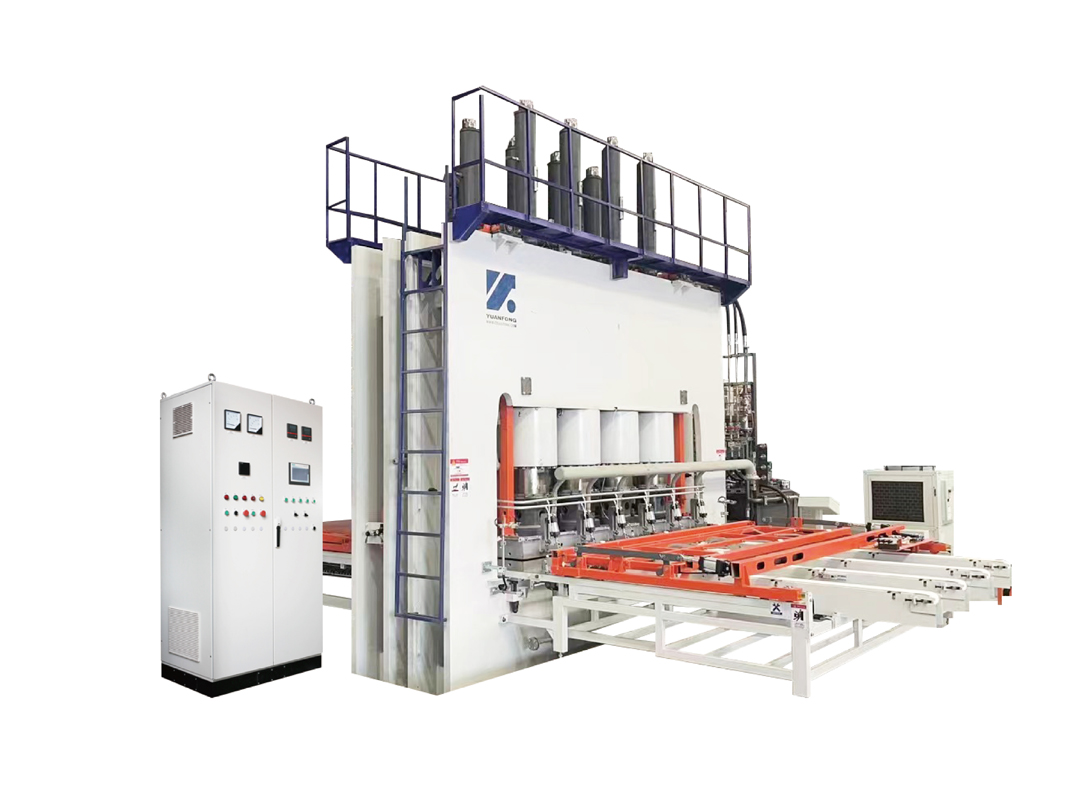

melamine laminate hot press machine

HKT Series Short Cycle Hot Press Line for Melamine Lamination

short cycle press machnie

BECCOR is a melamine press machine manufacturer in Changzhou, China, and the HKT series is our standard short cycle hot press line: it bonds melamine-impregnated paper — and also natural veneer or phenolic film — onto particle board, chipboard, MDF, HDF and plywood in one fast hot-pressing cycle, producing melamine faced boards with glossy, matte, wood grain or marble textures.
HKT is built around the board sizes most panel plants actually run: imperial formats from 4'×8' up to 7'×9'. Total pressure of 12,000–32,000 KN is delivered through 6–8 plunger cylinders of φ320–450 mm — more cylinders, evenly spaced, is how a melamine laminating press keeps specific pressure uniform across the full board instead of concentrating it in the middle.

Six configurations — Model A through Model S — let you start with a basic line and specify exactly the loading, paper handling and camera options your plant needs. For oversized metric formats, EIR flooring or robotic automation, see our KT series short cycle hot press machine flagship; for a proven melamine press at a standard-format investment, HKT is the line most of our customers start with.
short cycle press machnie

Melamine Press Machine Specifications: 4'×8' to 7'×9'

Press tonnage of the HKT line ranges from 1200T to 3200T for board sizes 4×8 to 7×9 ft; other sizes can be customized . Deep embossed and EIR textures require higher specific pressure — our engineers will recommend the right tonnage for your laminate flooring or furniture panel production.
    Model     HKT-1200   HKT-1400 HKT-1800 HKT-2000 HKT-2400 HKT-2800 HKT-3200
    Total Pressure of the Width(KN)    12000    14000    18000 20000 24000 28000 32000
    Diamter of Plunger Cylinder(mm)    φ320    φ340    φ340 φ360 φ400 φ420 φ450
    Num of Plunger Cylinder(pc)    6 6    8 8 8 8 8
Width Size 4’x8' 4’x9' 4’x10' 5’x8' 6’x8' 6’x9' 7’x9'
Metric formats available on request.

Why Choose HKT Series Automatic Short Cycle Hot Press line from BECCOR?

short cycle press machnie
Beccor intelligent focuses on making more high-end melamine laminating presses, such as HKT type short cycle hot press machine, and high-grade automation equipment.

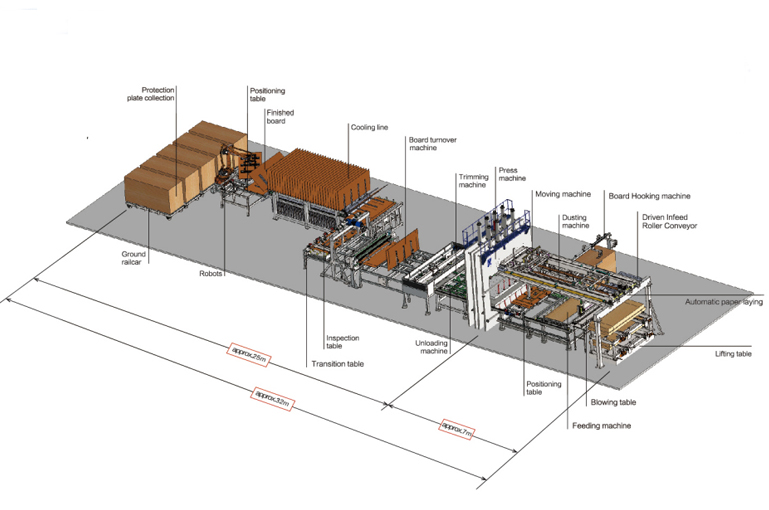

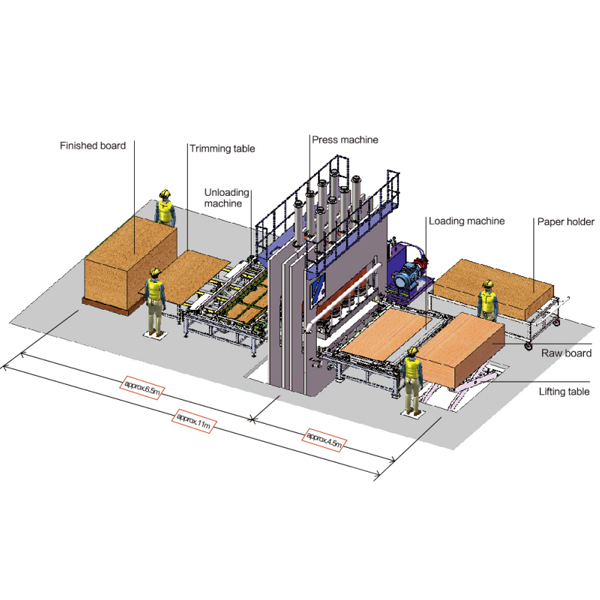

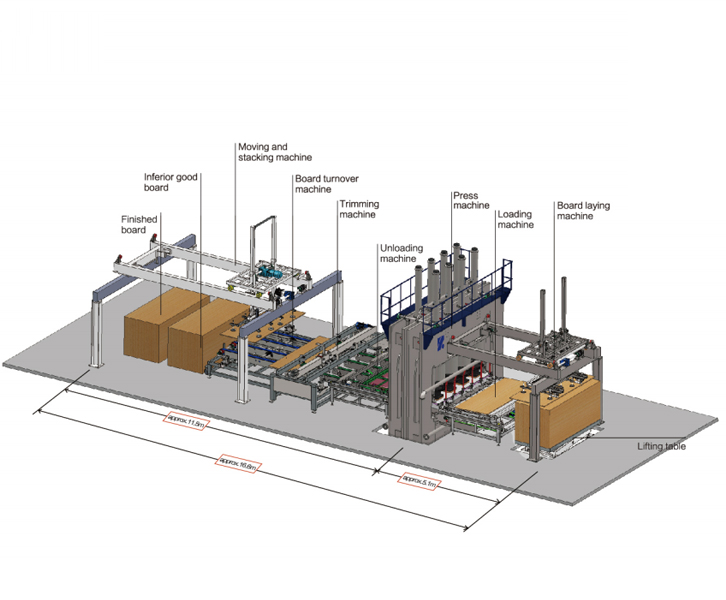

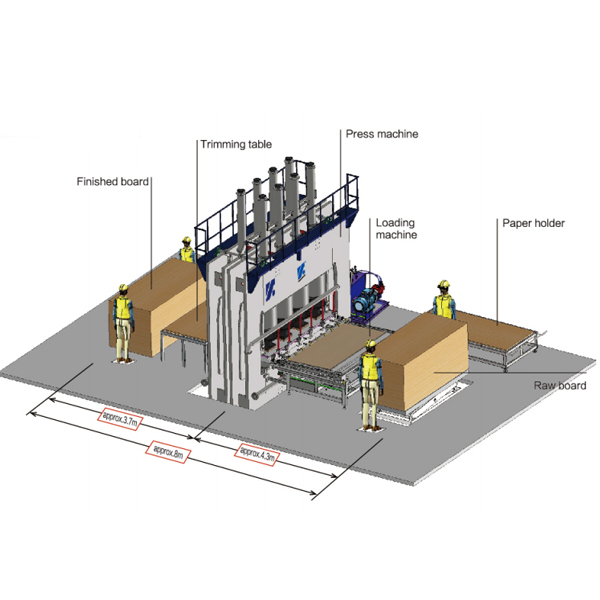

HKT Models A to S — Configure Your Melamine Laminate Press Machine

line

The equipment adopts an advanced hydraulic systemwith stable and accurate pressure output, which canensure that the fireproof board is evenly stressedduring the HPL Production Line and effectively guaranteethe consistency of the board density and quality.

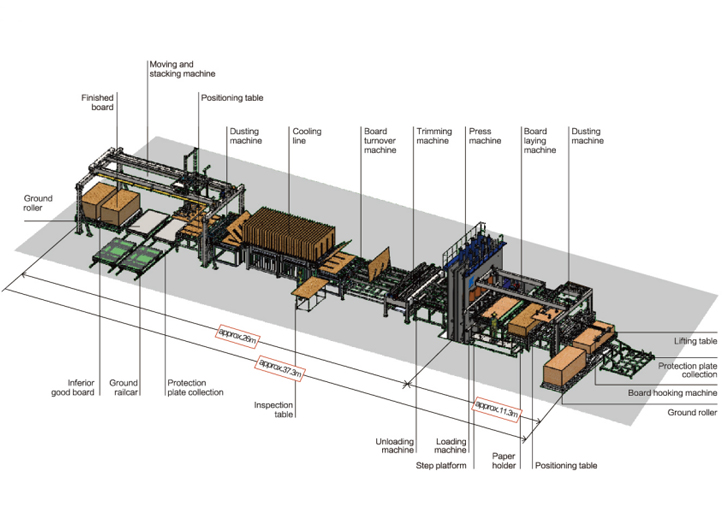

HKT melamine press machine model A configuration

Model A

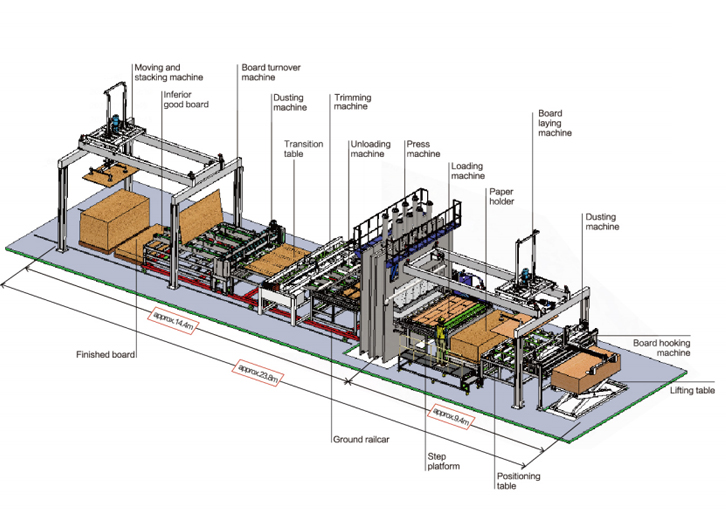

HKT melamine Hot press machine model B configuration

Model B


HKT short cycle hot press line model C configuration
Model C

HKT short cycle hot press line model D configuration
Model D

HKT melamine laminate hot press machine model E configuration
Model E

HKT melamine laminate hot press machine model S configuration
Model S

A
Model A
B
Model B
C
Model C
D
Model D
E
Model E
S
Model S

How to Choose HKT Short Cycle Hot Press Machine Tonnage

The correct HKT Melamine Laminate hot press machine tonnage depends on the board size, substrate density, surface texture and required specific pressure. Board size alone is not enough to determine the final machine model.

HKT Short Cycle Hot Press Machine Tonnage Calculation Formula

    Parameters Description
    Board Length Actual board length entering the press
    Board Width Actual board width
    Specific Pressure Pressure required for the substrate and surface finish
Engineering Margin Allowance determined according to hydraulic pressure loss, platen area and operating conditions
Required Tonnage Preliminary minimum pressing force, not the final machine model

4×8 MDF Tonnage Calculation Example

For a 1,220 × 2,440 mm MDF board with an example specific pressure of 40 kgf/cm²:

Board area: 244 × 122 = 29,768 cm²
Theoretical tonnage: 29,768 × 40 ÷ 1,000 = 1,190.7T
With an example engineering margin of 1.08:
1,190.7 × 1.08 = approximately 1,286T

Based on this preliminary calculation, an HKT-1400 short cycle press may be considered. However, this does not mean that HKT-1400 is the required model for every 4×8 MDF project.

This example is for reference only. Final model selection must also consider board thickness, substrate density, texture depth, pressure loss, effective platen size, cylinder arrangement and future production requirements.

Six Factors Affecting Press Tonnage Selection

  1. Board dimensions: Larger effective pressing areas require higher total force.
  2. Substrate type: MDF, particleboard and HDF have different density and pressing requirements.
  3. Surface finish: Matte, high gloss, light embossing, deep embossing and EIR require different process conditions.
  4. Boards per cycle: Single-board and double-board production require different effective-area calculations.
  5. Platen and embossing plate size: The effective pressing area and force distribution must be checked.
  6. Future production: Larger boards or deeper textures may require additional tonnage capacity.

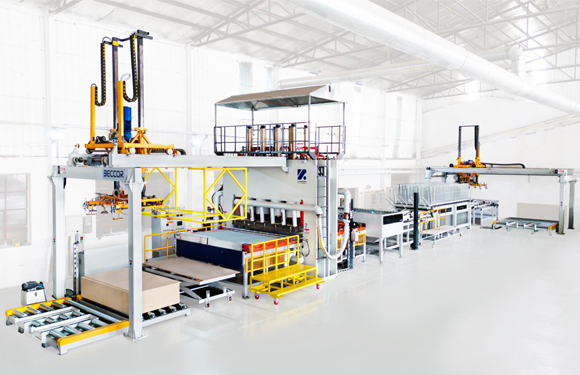

Features of HKT Series Short Cycle Hot Press Line

line
short cycle hot press machine

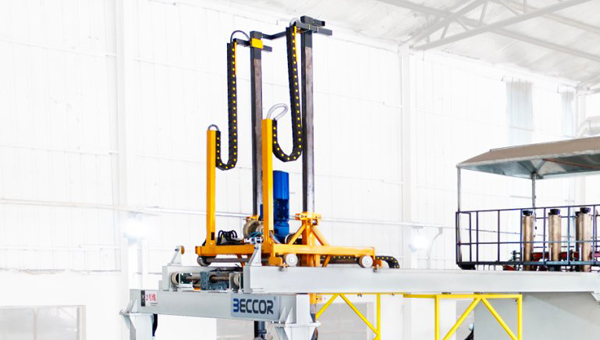

  Linear Guide Rail Loading & Unloading
Boards travel on precision linear rails — accurate positioning at the press mouth, cycle after cycle.

  Thermal Oil Heating, 180–220°C
Evenly distributed oil channels keep platen surface temperature uniform — the condition melamine resin needs to cure consistently.

  Presses Paper, Veneer and Phenolic Film
One HKT line covers melamine paper lamination, natural veneer overlay and phenolic film pressing — three products, one press.

  Proven Output
boards per hour at 20-second holding time — and the guaranteed rate goes into your contract.

Advantages of HKT Series Short Cycle Hot Press Line

line
melamine laminate hot press machine

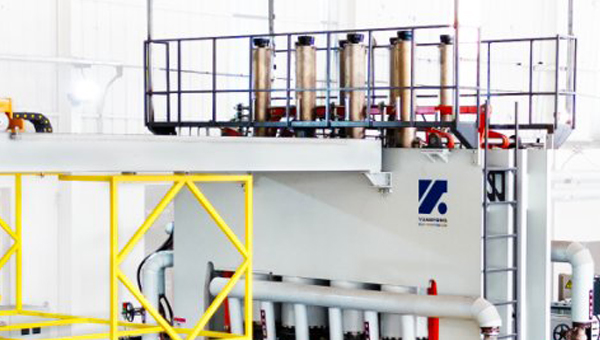

Hot Press Frame

short cycle press machnie

The frame of hot press machine is manufactured from high quality plain steel plate and stress analysis and computation in detail to ensure the enough stiffness and safety Factory. The whole working surface of the frame is processed by machine tool; the frame has high accuracy, which ensures the quality of the finished board.

Horizontal Synchronize Camera System

short cycle hot press line

Paper laying machines play an important role in the paper manufacturing industry by helping to streamline the process of handling and processing.paper laying machines play an important role by helping to streamline the process of handling and processing large quantities of paper, improving efficiency, and reducing labor costs.

melamine laminate hot press machine
short cycle hot press machine

Hot Press Machine of Cooling Line

short cycle press machnie

Cooling machine is play an important role in helping to maintain quality and efficiency by ensuring that products and materials are cooled to the appropriate temperature.

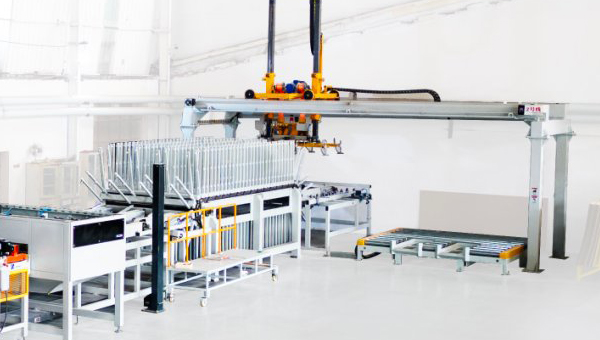

Moving and Stacking Machine

short cycle hot press line

A moving and stacking machine for a short cycle hot press machine plays an important role in the production of wood-based panels by automating the process of cooling and stacking the panels, improving efficiency, and reducing the risk of damage to the finished product.

short cycle hot press machine

Know Detailed Information

Please Download Catalogue Here
short cycle hot press line

Benefits of HKT Series Short Cycle Press Line

short cycle hot press line

  Frame Structure

The four corners of the stress concentration of the frame window of the press adopt the curve type optimized by the finite element method to reduce stress concentration and effectively ensure life.



  Oil Cylinder

Full automatic Short cycle hot press Cylinders are made of special thick steel seamless tubes.Welding is done by robotic machines to control all welding parameters.CNC machining ensures tight minimum tolerances in operation to extend the life of the cylinder.

  Pressure Control

The full automatic short hot press machine electronic equipment is controlled by a microprocessor, and the pressing parameters are automatically set by the press buttons.



  Digital Instrument

The digital instrument carries out independent electronic control on the pressure plate temperature and the digital pressure gauge controls the pressure level.



Auxiliary Equipment for Your Melamine Press Line

short cycle hot press line
Starting your first melamine faced board plant? Beyond the HKT hot press nachine  you need three things to produce: a thermal oil boiler, textured stainless steel press plates for your surface designs, and hydraulic oil — we specify and supply all of them with your line. Add the board turnover machine, cooling system, cushion pads and packing machine as volume grows.
board turnover machine
Board Turnover Machine
small power
Small Power
high power cooling system for oil
High Power Cooling System for Oil
stainless steel Plate
Stainless Steel Plate
cushion pad for short cycle hot press machine
Cushion Pad
Smart Film Packing Machine
Smart Film Packing Machine
Anti-counterfeit Code Printer
Anti-counterfeit Code Printer

Intelligent Technology of HKT Series Short Cycle Hot Press Machine

plywood hot press machine
TEQVM9~[RGLJ{BN6RO(8V1E

1.Electrical Control System

The Siemens PLC for the Electrical Control System. use touch screen Output count, fault detection, password setting, hot-pressing process monitoring.



TEQVM9~[RGLJ{BN6RO(8V1E

2.Siemens PLC

Siemens PLC are known for their reliability, scalability, and advanced features. They are used in a wide range of industries, including manufacturing, energy, transportation, and building automation.

TEQVM9~[RGLJ{BN6RO(8V1E

3.Siemens Servo Motor Control

Siemens servo motor control is a system used for controlling the movement and positioning of servo motors. A servo motor is a type of motor to control the all system.

Servo hydraulic station

4.Hydraulic Station

The servo pumping system for the hydraulic station can save 30% on electrical power consumption. Machine working more quite,More accurate control.Hydrulic stations are used to power hydraulic equipment such as cylinders, motors, and valves.

Our Factory
Short-Cycle-Press-Machine

Changzhou Beccor Intelligent Equipment Co., Ltd. is committed to the research, development and production of high-end automatic wood-based panel surface processing technology and equipment. The company has strong technical strength, perfect testing means, and has gathered a group of high-quality, high-tech professionals.
The company's fully automatic synchronous double-face fast veneer production line, non-standard customized supporting full automatic production line and various automatic pressing equipment are widely used in the production of furniture panels, reinforced composite floors and various decorative panels. It is suitable for particleboard, MDF and other wood panels and melamine impregnated decorative paper veneer, high-quality processed products and flexible use of substrates.

Cooperation Process
line
  • 1
    Specialized
    This area can be fully edited and gives
    First-rate >
  • 2
    Specialized
    This area can be fully edited and gives
    First-rate >
  • 3
    Specialized
    This area can be fully edited and gives
    First-rate >
  • 4
    Specialized
    This area can be fully edited and gives
    First-rate >



Step.2
Quote price

Step.3
Negotiate price and lead time

Step.4
Sign the contract

Step.5
Payment and production

Step.6
Inspection

Step.7
Shipment
Commissioning, Training & Lifetime Support
short cycle press machnie
The engineers who built your melamine press install it and train your operators — no dealers, no third-party service trucks, just the factory behind its machine. From our application insight to our confidence at the counter, BECCOR will work to answer your requests with expert care and promptness.parts damaged by quality defects replaced free; support answered within 24 hours.
  • 1
    Speciality SERVICES
    To provide information, market research and forecasting, provide consultancy, offers a variety of convenience and market service and so on.Assist the clients prepare enable our products to maximize meet customer needs, but also to maximize customer investment play the comprehensive economic benefits.​​​​​​​
  • 2
    Quality SERVICES
    The Service Technician Certification program from BECCOR is a mark of excellence.Our technicians can service your machine with expertise, helping optimize performance. Ask your BECCOR dealer about what other makes and models of machines, in addition to those from BECCOR, they service locally
  • 3
    Extra Mile PRICING
    In many locations, BECCOR technicians can come to you in the field with mobile service trucks pre-stocked with popular parts, to save time and provide parts or service on the spot, to help keep you and your equipment running. When it comes to premium service, BECCOR goes the extra mile.​​​​​​​

Customer Case

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

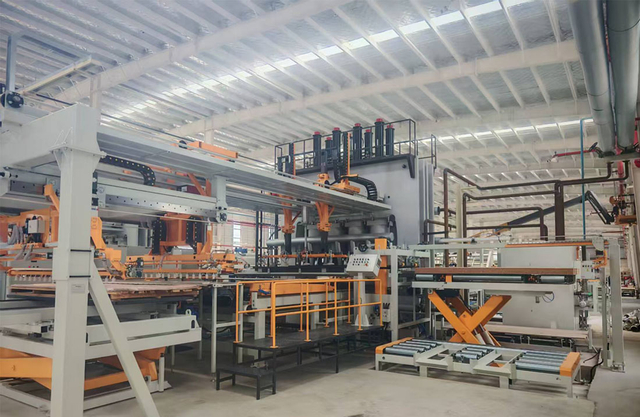

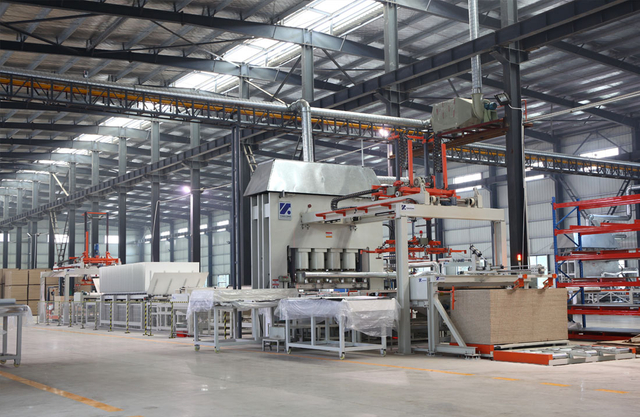

Projects of HKT Short Cycle Hot Press Line
short cycle press machnie
Our Corporate Clulture
short cycle press machnie
HPL Production machine
press line

FAQ of Full Automatic Short Cycle Press Line

  • Does BECCOR provide installation, commissioning and operator training?

    BECCOR can provide installation guidance, pressure testing, process commissioning, trial production, operator training, acceptance support, spare-parts recommendations and remote technical service. The service period, response time and warranty terms follow the signed contract.

  • What equipment is included in an HKT quotation?

    The supply scope depends on the selected Model A–S configuration. It may include the main press, hydraulic system, loading and unloading equipment, paper laying system and electrical controls. Press plates, heater, trimming, cooling, stacking and packaging systems may be quoted separately. Please refer to the Project Scope in the quotation.

  • What heating system is required for the HKT press?

    The HKT press normally uses a thermal oil heating system to provide stable and uniform platen temperatures. The thermal oil heater may use gas, diesel, biomass or electricity. Whether the heater is supplied by BECCOR will be clearly stated in the quotation.

  • Can the HKT press produce glossy, matte and deep embossed boards?

    The HKT Series can produce glossy, matte, woodgrain and embossed melamine boards by selecting the correct press plate, cushion pad, pressure, temperature and pressing cycle. Deep embossed surfaces normally require higher specific pressure, greater frame rigidity and accurate platen parallelism.

  • What is the difference between the HKT and KT Series?

    The HKT Series offers flexible configurations for standard board sizes with a more controllable investment. The KT Series is designed for higher automation, larger board formats, high-output EIR production, camera registration, robotic handling and automatic press plate changing. BECCOR will recommend the appropriate series based on your project.

  • What is the difference between HKT-1200, HKT-2400 and HKT-3200?

    The models differ in total pressing force, cylinder configuration, achievable specific pressure and suitable applications. HKT-1200 is generally used for standard flat or lightly textured boards, while HKT-2400 and HKT-3200 are better suited to higher-density substrates, larger boards or deeper textures. Final selection depends on the effective pressing area.

  • Which HKT tonnage is suitable for 4' × 8' MDF or particleboard?

     Tonnage depends on the board size, substrate density, surface texture and required specific pressure. The preliminary formula is:

    Tonnage ≈ Board length × width (cm) × specific pressure (kgf/cm²) ÷ 1,000 × safety factor

    Send BECCOR your board and surface specifications for an accurate HKT model recommendation.

Consult-Your-BECCOR-Machine-Expert

Send us your door skin design or sample photo — BECCOR will propose the right press tonnage, mould set and line layout with a factory-direct price within 24 hours.

Three things — board size, substrate, target daily output — and our engineers reply within 24 hours with the recommended KT model, complete layout drawing and factory-direct price.
