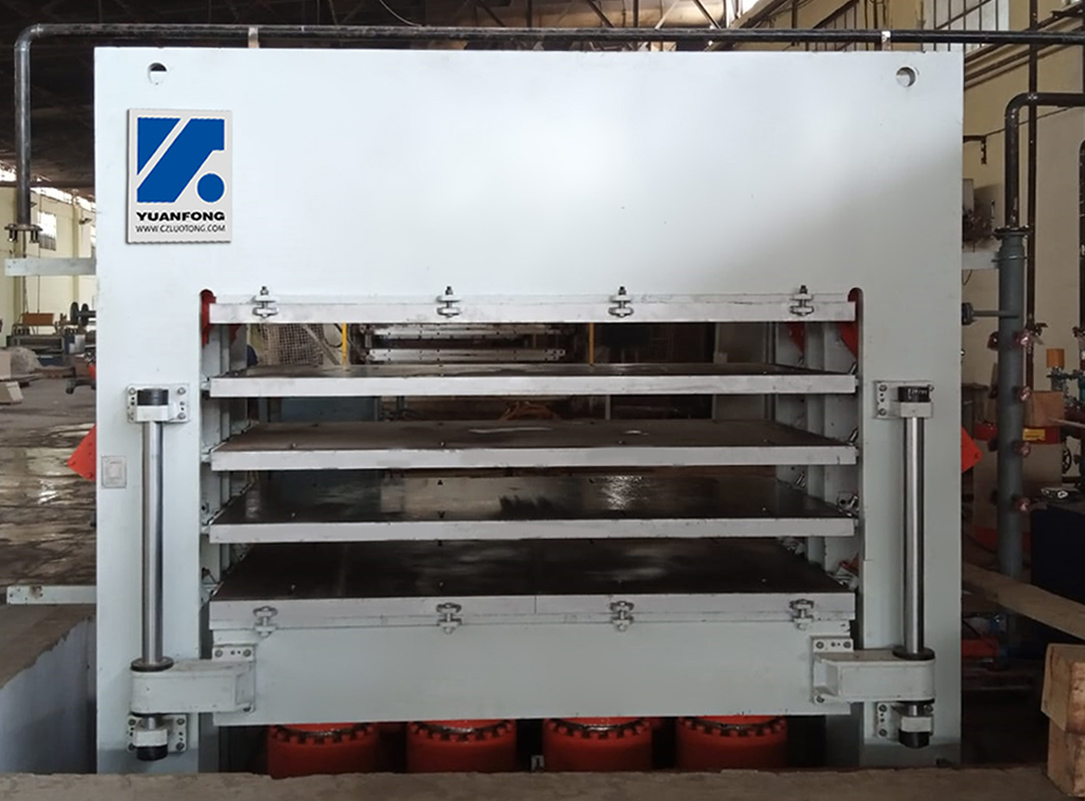

door skin press machine

Door Skin Press Machine for Moulded & Laminated Door Skins

short cycle press machnie
BECCOR multi-daylight door skin hot press machines (900T–1600T, 1–4 layers) produce moulded HDF door skins, melamine laminated door skins and veneer door skins — complete with chrome door skin moulds, Siemens PLC control and synchronous closing system.
short cycle press machnie

 Technical Parameters Of    Door Skin Press Machine

The Door Skin Press Machine can from 900T to 1600T (based on 1220*2440mm board).The raw board size : 1220*2440 / 1220*2745 / 1220*3050 / 1830*2440 / 2100*2800 / 1830*3660 etc. other door skin sizes and pressures can be customized to your mould design.
Model     YXDM-900   YXD-1200 YXDM-1600
    Total Pressure (KN) 9000    12000    16000
    Plunger Cylinder Diamter(mm)    φ250    φ280    φ320
    Num of Plunger Cylinder(pc)  8 8    8
Width Size Depends on customers
Num of Layers 1-4
Distance between layers(mm) 250

Why Choose Door Skin Press Machine from BECCOR?

short cycle press machnie

Door Skin Moulds: Designs, Materials and Replacement

The molds determine the design and quality of the door skins. BECCOR offers complete sets of chrome-plated door skin molds, covering standard panel designs (such as 2-panel, 4-panel, 6-panel, etc.), and provides custom designs based on your drawings or door skin samples.

Mold Material: There are two types of materials. One consists of an upper plate made of stainless steel and a lower plate made of stainless iron, with a chrome-plated finish. The other type is made entirely of stainless iron,The design depth can be customized according to client requirements. The molds are installed in pairs at the press opening, allowing for quick and convenient replacement.Mold replacement and new mold designs remain available throughout the entire service life of the press.
line

                                      Features of                                             Door Skin Press Machine

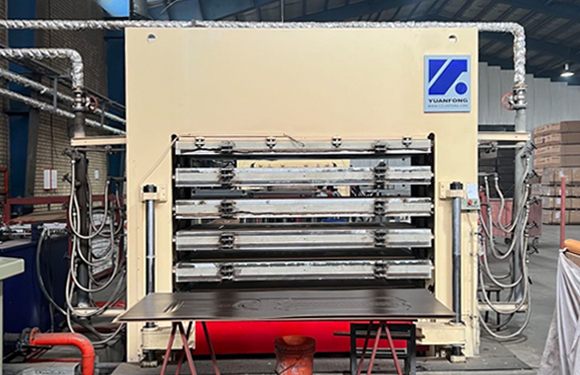

door skin hot press machine

  The auxiliary time is short, and the press can be closed and pressurized quickly.

  The board feeding machine and the board discharging machine adopt the output method of linear guide rail to realize fast loading and unloading of boards.

  Stable and fast working process, proper paper usage, the maximum output can reach 1000 sheets/day.

  High-quality pressing products meet the production requirements of high-end furniture or floors.

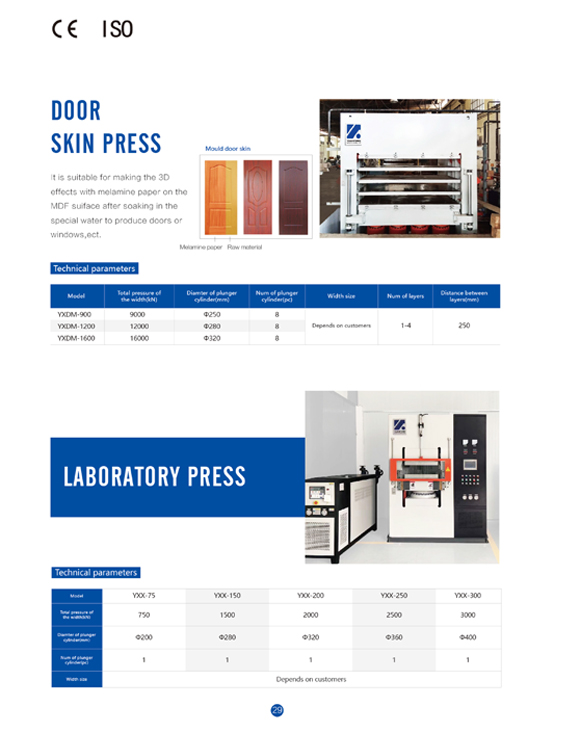

Download the BECCOR Door Skin Press Catalogue (PDF)  》》

door skin hot press machine

               Benefits of                      Door Skin Hot Press Machine

short cycle hot press line

  Frame Structure

The four corners of the stress concentration of the frame window of the press adopt the curve type optimized by the finite element method to reduce stress concentration and effectively ensure life.



  Oil Cylinder

Door skin press cylinders are made of thick-wall seamless steel tube, robot-welded with controlled parameters and CNC machined to tight tolerances — extending seal life under high-frequency, high-pressure duty.

  Pressure Control

The pressure control system of the door skin press keeps pressing force stable and consistent across every daylight, monitored in real time on the HMI touch screen.



  Digital Instrument

The digital instrument carries out independent electronic control on the pressure plate temperature and the digital pressure gauge controls the pressure level.



            Accessories of             Door Skin Press Machine

short cycle hot press line
Changzhou Beccor Intelligent Equipment Co., Ltd. is a China manufacturer and supplier of door skin press machines and panel lamination lines, with more than 16 years of press engineering experience. Our door skin presses have been installed in [X] countries
board turnover machine
Board Turnover Machine
light hydraulic lifter
Light Hydraulic Lifter
electronic temperature control value
Electronic Temperature Control Value
small power
Small Power
high power cooling system for oil
High Power Cooling System for Oil
stainless steel Plate
Stainless Steel Plate
cushion pad for short cycle hot press machine
Cushion Pad
Smart Film Packing Machine
Smart Film Packing Machine
Anti-counterfeit Code Printer
Anti-counterfeit Code Printer

                    Intelligent Technology of                      Door Skin Hot Press Machine

plywood hot press machine
TEQVM9~[RGLJ{BN6RO(8V1E

1.Electrical Control System

The Siemens PLC for the Electrical Control System. use touch screen Output count, fault detection, password setting, hot-pressing process monitoring.



TEQVM9~[RGLJ{BN6RO(8V1E

2.Siemens PLC

 Siemens PLC with HMI touch screen stores pressing programs for each mould design — temperature, pressure and cycle time are recalled at one touch for repeatable door skin quality, run after run.

TEQVM9~[RGLJ{BN6RO(8V1E

3.Siemens Servo Motor Control

Siemens servo motor control is a system used for controlling the movement and positioning of servo motors. A servo motor is a type of motor to control the all system.

Servo hydraulic station

4.Hydraulic Station

The servo pump hydraulic station cuts power consumption by about 30% compared with conventional systems, runs quieter, and gives more accurate pressure control for even density across the whole platen.

Our Factory
Short-Cycle-Press-Machine

Changzhou Beccor Intelligent Equipment Co., Ltd. is committed to the research, development and production of high-end automatic wood-based panel surface processing technology and equipment. The company has strong technical strength, perfect testing means, and has gathered a group of high-quality, high-tech professionals.
The company's fully automatic synchronous double-face fast veneer production line, non-standard customized supporting full automatic production line and various automatic pressing equipment are widely used in the production of furniture panels, reinforced composite floors and various decorative panels. It is suitable for particleboard, MDF and other wood panels and melamine impregnated decorative paper veneer, high-quality processed products and flexible use of substrates.

Cooperation Process
line

Step.1
Send your inquiry

Step.2
Quote price

Step.3
Negotiate price and lead time

Step.4
Sign the contract

Step.5
Payment and production

Step.6
Inspection

Step.7
Shipment
Service Process
short cycle press machnie
You can expect sound service from BECCOR dealer service technicians when and where you need it most. From our application insight to our confidence at the counter, BECCOR will work to answer your requests with expert care and promptness. We know your machines better than anyone. Dependability matters when machines need service. We take pride in resolving issues the first time, helping you maximize your productivity.
  • 1
    Pre-sales engineering
    Free line layout drawing, foundation drawing and power configuration based on your workshop and mould requirements.
  • 2
    Installation &      commissioning
    BECCOR engineers travel to your factory for installation, commissioning and operator training until the line reaches stable production.
  • 3
    Lifetime technical support
    Remote support via video call and WhatsApp within [24] hours; mould replacement and spare parts supplied for the life of the press.
