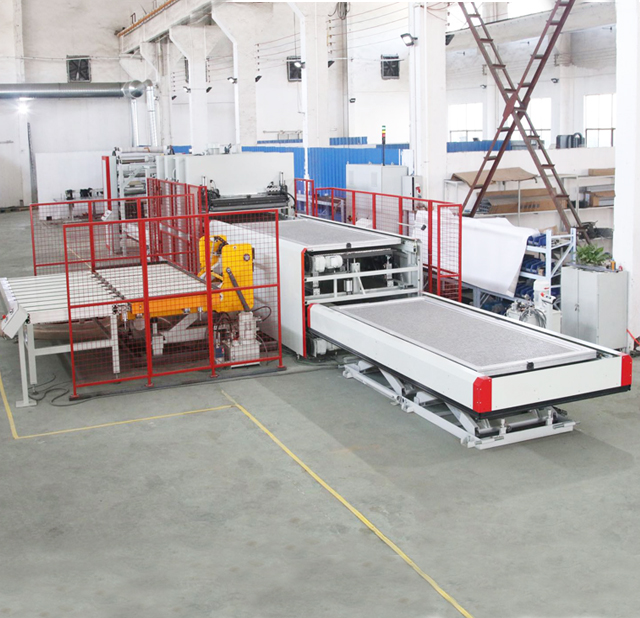

3D Laminating Membrane Press Machine

3D Membrane Press Machine

Automatic 3D Veneer Membrane Press Machine Video

Parameter of 3D Membrane Press Machine

Model Machine Dimension Press Weight Heating Plate Dimension Working Dimension Installed Power Supply Vacuum Pressure Chamber pressure max. Upper aluminium heating plate Foil cutting
HM B3602 12,800mmx2,200mmx2300 mm 15T 3,600 mm x1,500 mm 3,380 mm x1,320 mm Approx.50 kW ≥-0.095 Mpa ≤0.6 Mpa Oil-electric Manual or Pneumatic
HM B3603 20,000 mmx6,400mmx3500 mm 18T 3,600 mm x1,500 mm 3,380 mm x1,320 mm Approx.80 kW ≥-0.095 Mpa ≤0.6 Mpa Oil-electric Manual or Pneumatic

3D Membrane Press Machine and Operating Data Logging

Beccor Uses state-of-the-art software programs, such as Siemens、ABB and Schneider.

The comfort touch panels of 3D Membrane Press Machine are displaying all important data of the plant at a glance and provide quick access to all process parameters. Moreover HallMark has got a new remote maintenance concept with simplified software, which improves maintenance and troubleshooting.

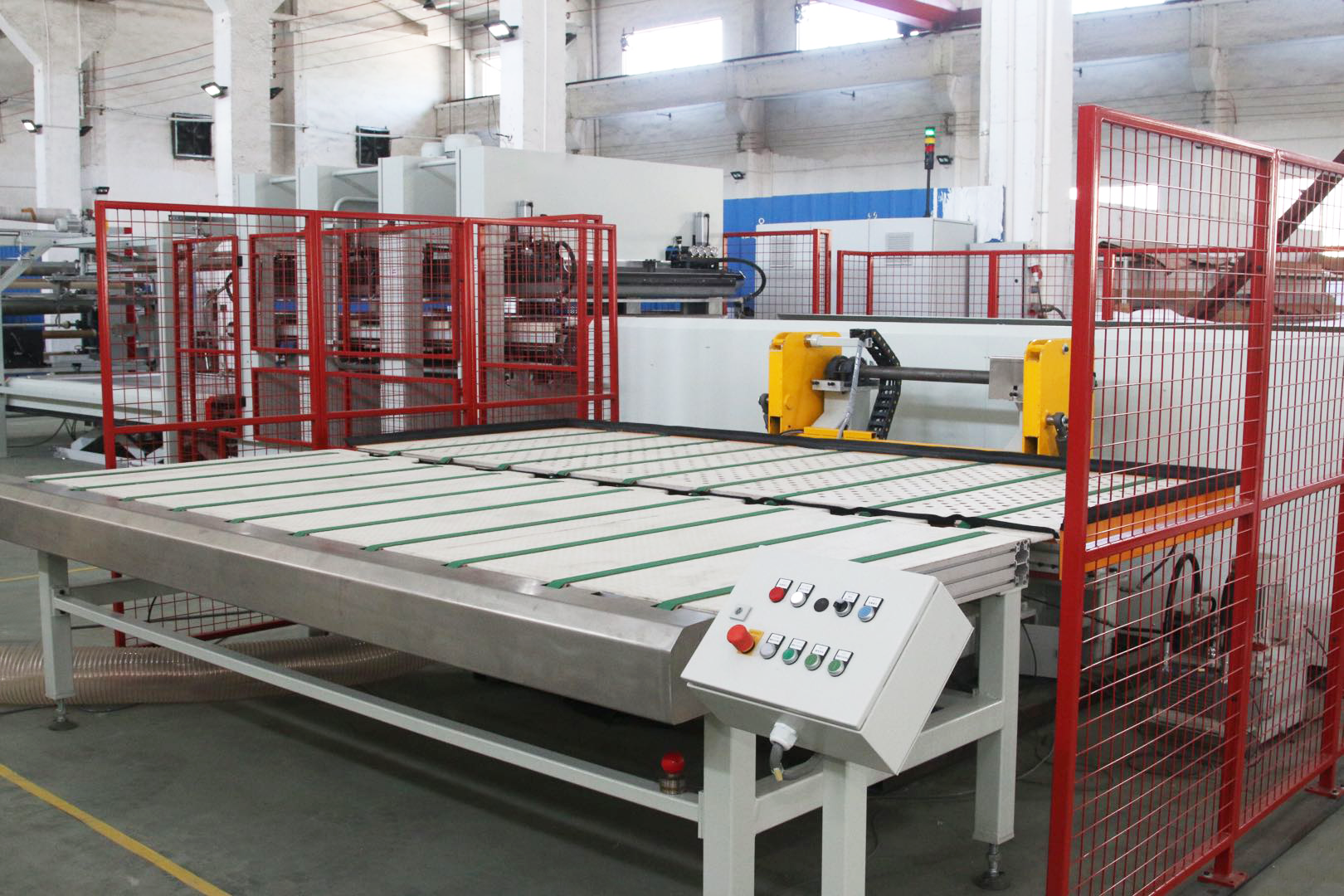

3D Membrane Press Machine

Why Choose Beccor

3D Membrane Press Machine

 Hydraulic System Adopts Imported Solution.



 Reliability and Stability.



 Key components of hightemperature insulation material made of.

3

Features of 3D Membrane Press Machine

Control System
The control method adopts the industry's top brand Siemens system from Germany, the touch screen adopts the German Siemens high-definition touch screen, and the software adopts the control method of German high-end pressing technology to ensure the smooth and safe operation of the equipment.



Vacuum System
The entire series uses the German Becker imported vacuum pump U5.100, 2.2kw, which can ensure the fastest release of vacuum and can reach the extreme value



Temperature Control and Heating
The heating method is German electric oil heating plate, the electric heating wire is fully imported, the three-layer electric heating wire arrangement scheme, the first layer of oil circuit circulation balance, the only one in China to use this scheme, the heating plate has a supplementary heating function around it, which can ensure the temperature balance of the heating plate; compared with the German imported heating plate, it is more flexible and cannot be repaired.



Easy to Operate
The reading and setting of pressure, temperature, and time are completely realized on the Siemens touch screen. The individual hydraulic pressure, temperature, and air pressure are better measured and controlled through JUMO pressure sensors, JUMO thermal resistors, and Optris infrared thermometers to ensure the quality of each pot of product.



Benefits of 3D Membrane Press Machine

1. Enhanced Aesthetic Appeal
The most obvious benefit is the enhanced visual appeal. With the ability to create 3D textures and intricate designs, the vacuum membrane press machine allows for more creative freedom. This leads to better product differentiation and an eye-catching finish that can elevate the quality of any product.

2. Improved Durability and Resistance
As mentioned earlier, the bonding technology used ensures that the laminate is resistant to scratches, moisture, and wear. This makes the 3D membrane press machine ideal for applications in high-use environments, where durability is paramount.

3. High Productivity and Flexibility
Whether a business needs a large volume of product runs or customized small batches, the 3D laminating membrane press machine can adapt to different production needs. The efficiency of the machine allows for rapid turnaround times and the ability to create customized products with ease.

Know Detailed Information

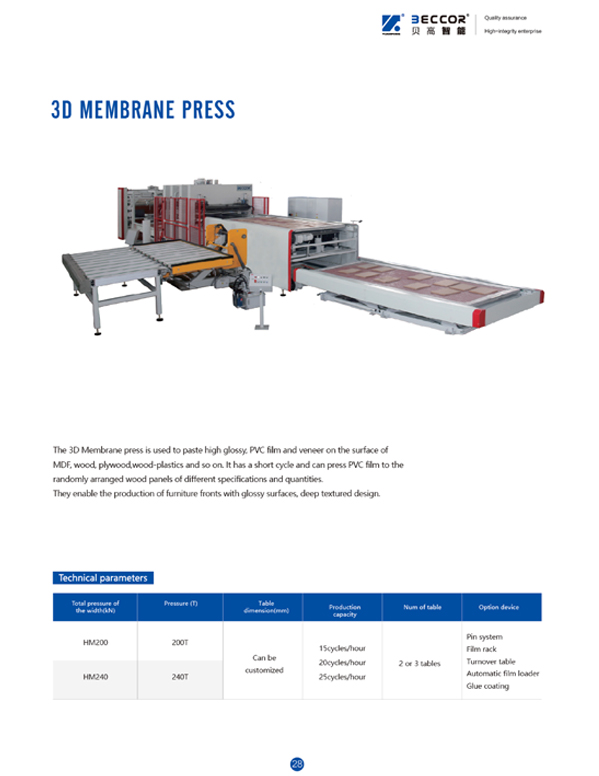

Please Download Catalogue Here
3D Membrane Press Machine
Our Projects of 3D Membrane Press Machine
In today's fast-paced digital world, organizations strive to connect with their customers on a deeper level. Our HallMark do exactly the same thing, researching real customer cases and allowing potential customers to see our company's product or service.
  • 3D Laminate Membrane Press Machine

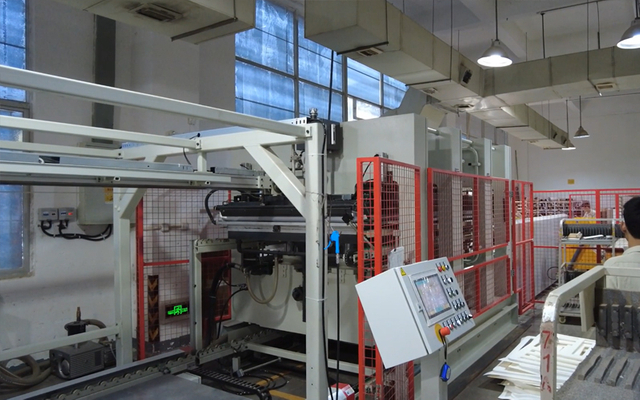

    3D Laminate Membrane Press Machine in America
  • 3D Membrane Press Line

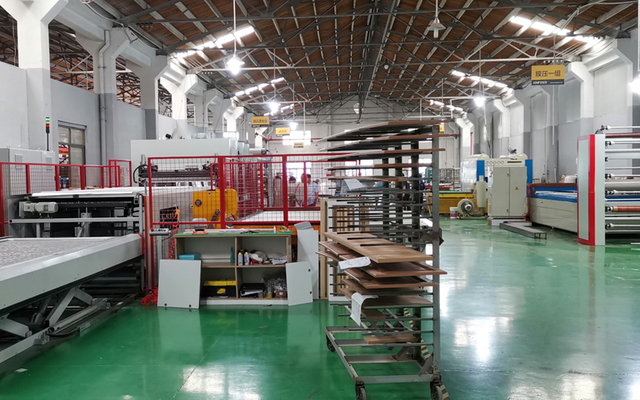

    3D Membrane Press Line in Vietnam
  • 3D Membrane Press Machine

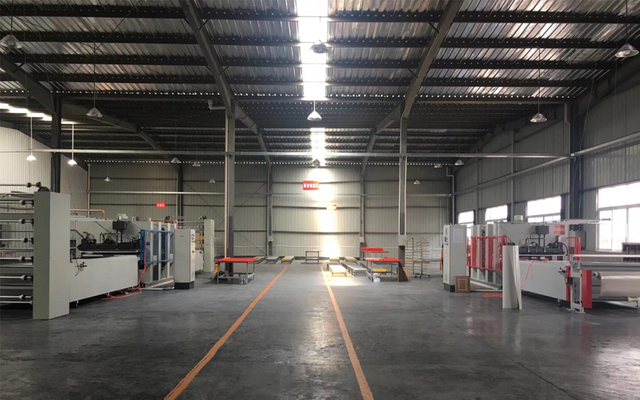

    3D Membrane Press Machine in Turkey

FAQ of 3D Membrane Press Machine

  • Q Why is a 3D membrane press machine important for furniture manufacturers?

    A 3D membrane press machine helps manufacturers achieve consistent surface finishing, strong visual appeal, and efficient mass production for profiled panels. It reduces the need for labor-intensive finishing methods and supports a wide variety of colors, textures, and designs for modern furniture production. The market also widely uses thermoformable 3D films for this purpose.

  • Q What substrates are suitable for vacuum membrane pressing?

    The most common substrates are MDF, HDF, particleboard, and other wood-based composite panels. These materials are widely used because they can be machined into profiles and then wrapped with decorative films in a stable and efficient production process.

  • Q What materials can be processed by a 3D membrane press machine?

    A 3D membrane press machine is commonly used with PVC foil, PET/PETG decorative films, transfer films, and natural wood veneer. Depending on the machine design and process setup, different surface materials can be used for both standard and premium furniture applications.

  • Q How does a 3D membrane press machine work?

    The machine heats the surface material, such as PVC foil or PET film, until it becomes formable. Then vacuum and pressure pull the material tightly over the substrate so it follows the surface profile and bonds to the board. This process is especially suitable for routed, carved, grooved, and raised MDF parts.

  • Q What is a 3D membrane press machine

    A 3D membrane press machine, also called a vacuum membrane press or 3D laminating machine, is used to apply decorative films or veneers onto flat and profiled panels through heat, vacuum, and pressure. It is widely used in the production of cabinet doors, wardrobe panels, decorative wall boards, interior doors, and other shaped furniture components
