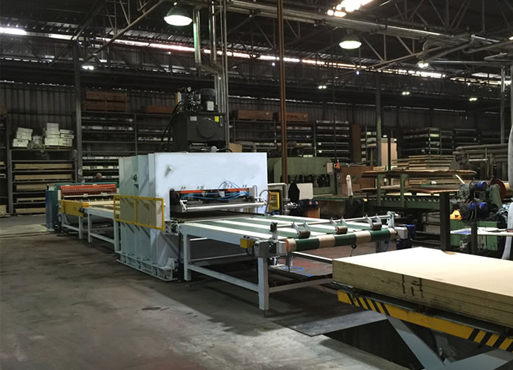

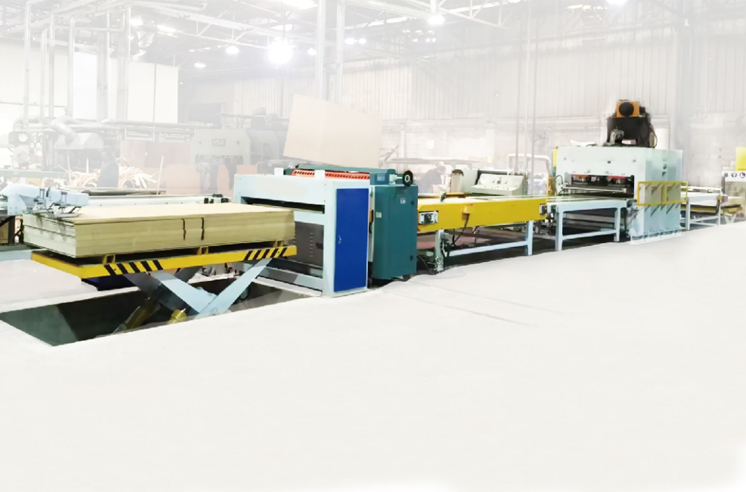

Automatic veneer lamination line with hot press and auto loading

Automatic Veneer Lamination Line (Veneer Hot Press)

Automatic Veneer Lamination Line Video

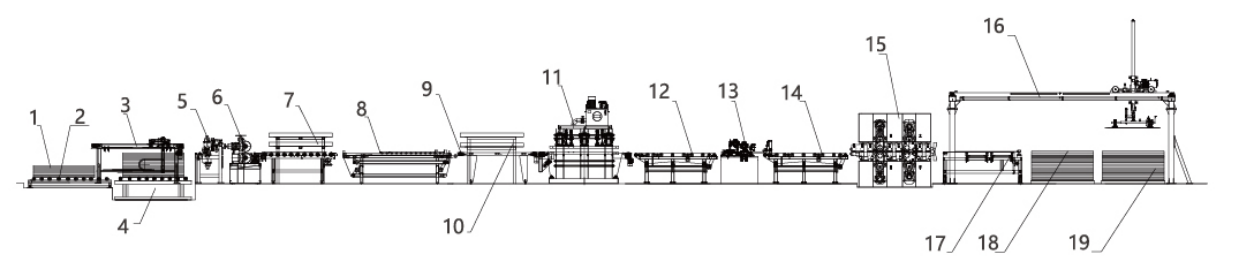

Process Flow of Veneer Lamination Line

1.Veneer Lamination Line

Raw board → brushing → glue spreading → veneer laying → assembling → automatic feeding → hot pressing → unloading → trimming → sanding → stacking.

Veneer lamination line process flow from glue spreader to hot press and stacker

Technical Specifications of BECCOR Veneer Lamination Line

No Item Parameter
1 Heating Plate Width 1370mm
2 Heating Plate Length 2700mm
3 Heating Plate Height 105mm
4 Packing Quantity 20 stacks/h
5 Side guard Angle dimensions 80×50mm×50mm×4mm
6 Packing tape specifications 16mm×0.8~1.0mm
Need a different panel size? All BECCOR veneer press lines are custom-engineered — OEM specifications available on request.

Why Choose Beccor's Automatic Veneer Lamination Line

1. One-operator lineintegrated in-feed and out-feed conveying runs the full line with a single operator2. Even pressing quality

point platen temperature control within ±1°C prevents glue spots and edge lifting.3. Fast cycle

high platen temperature and short press time deliver up to 20 - 30 boards per hour.

4. Flexible loading

Switch between automatic and manual loading for mixed panel batches.5. Recipe memory

press time, temperature and pressure stored per product; changeover in under 1 minute.6. Proven after-sales

installation supervision, spare parts from stock, and remote troubleshooting support.

veneer lamination line

Applications & Substrates Veneer Lamination Line

Door panels
Press 0.3 mm natural veneer or HPL onto solid core and hollow core door blanks with even pressure across the full panel.

Furniture boards
Double-sided veneer lamination on MDF and particle board for wardrobes, cabinets and table tops, ready for sanding and finishing.

Laminated flooring
Bond decorative veneer to HDF/plywood cores with precise temperature control to prevent warping.

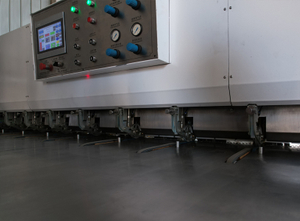

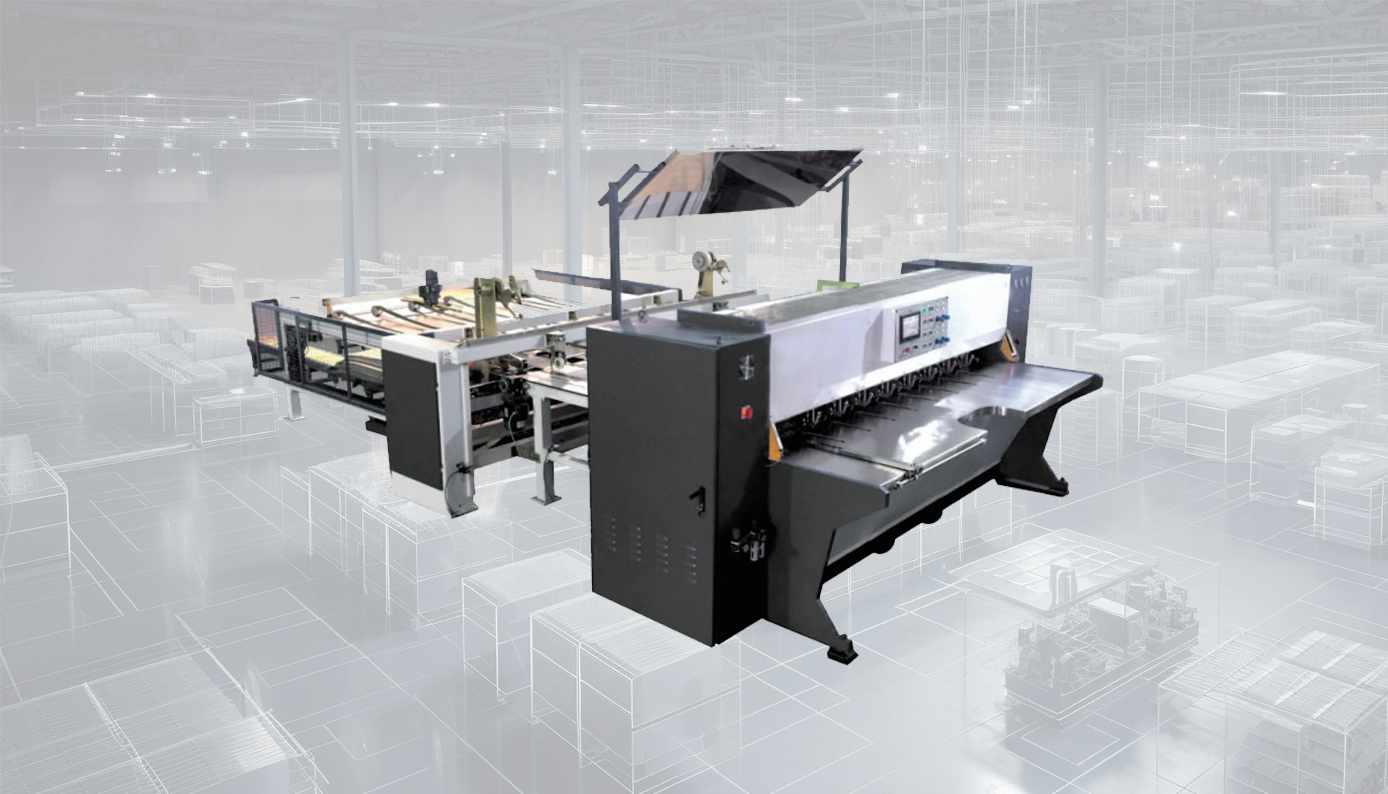

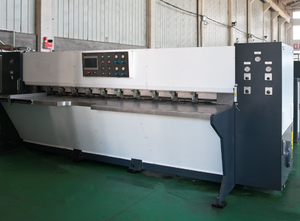

Automatic Veneer Lamination Line of Veneer Splicing Machine

This equipment is a new product tailored for enterprises that need seamless horizontal fast splicing of veneer boards. It combines the characteristics of current products, is developed through comprehensive research and development and continuous experimental improvement by our company, and has the advantages of efficient and fast splicing, energy saving, stable splicing products, saving manpower and time, etc.

automatic veneer lamination line

Parameter of Automatic Veneer Splicing Machine

Specification HMPF-1500 HMPF-2800 HMPF-3400
Installation Capacity 15.5KW 23.5KW 27.5KW
Oil Supply Capacity 180L(Hydraulic Oil)/33CST-50℃
Compressed Air 4Bar 4Bar 4Bar
Average Splicing Speed(time/minute) 15-30 15-30 15-30
Length of Spliced Veneer 350 -1500mm 350 -2800mm 350 -3400mm
Width of Splicing Veneer 70-620mm 70-620mm 70-620mm
Thickness of Splicing Veneer 0.3 - 1.8mm (SJYZ:1-3mm)
Overall Dimensions 3200*2150*1180mm 4340*2150*1180mm 4950*2150*1180mm
Overall Weight 8900kg 11200kg 152000kg
Auxiliary Equipment Paste Bandsaw head edging machine/stacker conveyor/stacker lift(optional according to customer needs)

Know Detailed Information

Please Download Catalogue Here

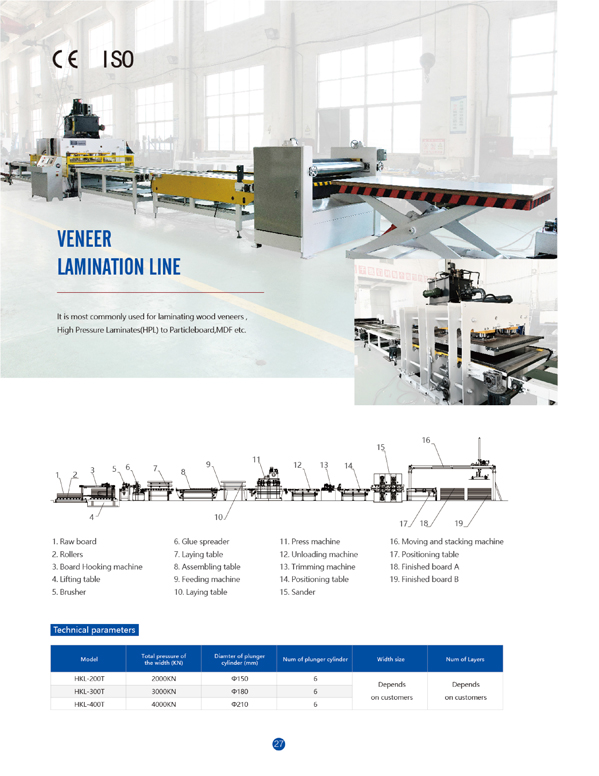

3D Membrane Press Machine

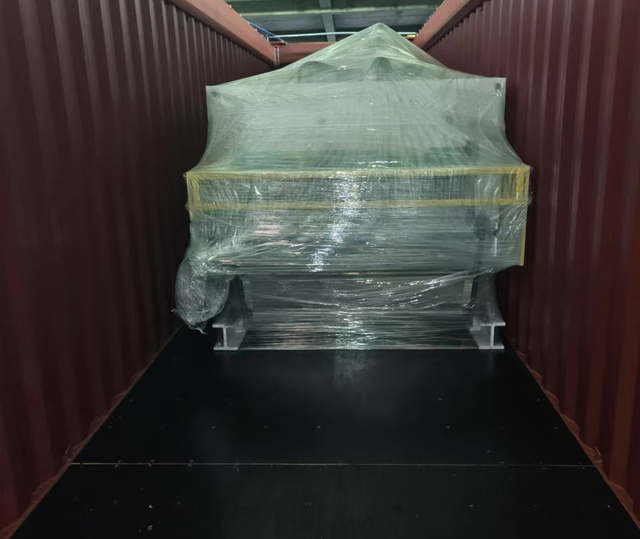

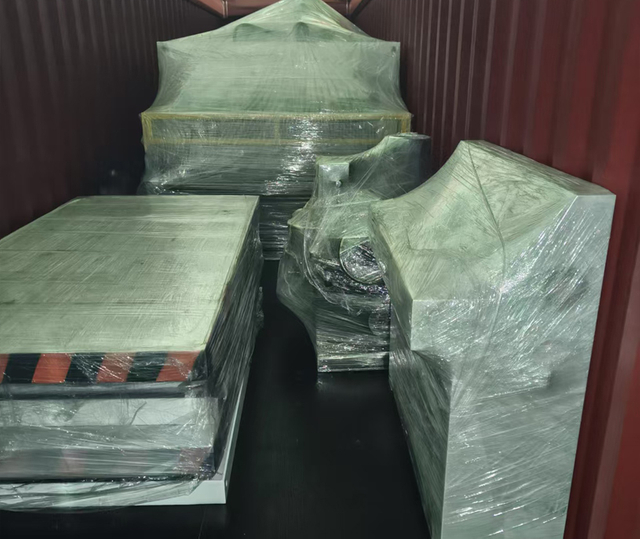

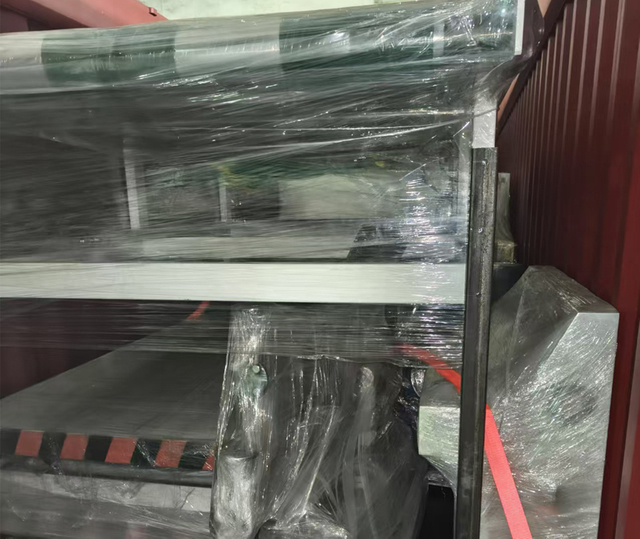

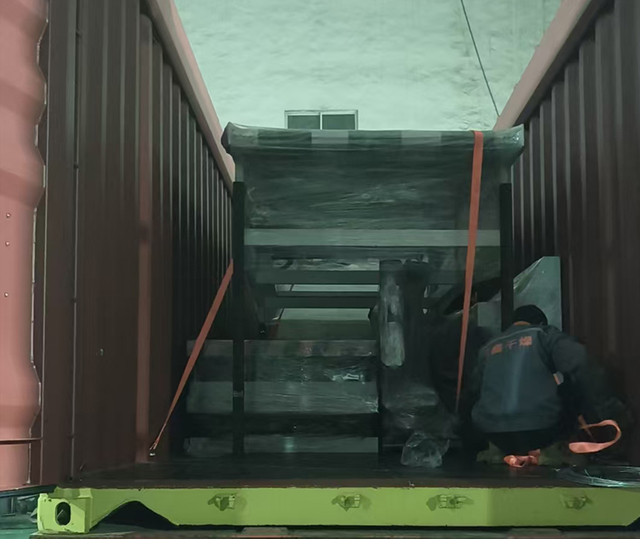

Delivery of Veneer Lamination Line
Our team ensured that all components of Veneer Lamination Line were securely transported to your facility. We have taken every measure to guarantee the safety and integrity of the equipment during transit, adhering to the highest standards of handling and packaging.

Till now we have successfully set up many Packaging line Impregnation Line factories in the middle east, Southeast Asia, Central Asia, Vietnam etc.


Customer Case

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
Consult-Your-BECCOR-Machine-Expert

Send us your door skin design or sample photo — BECCOR will propose the right press tonnage, mould set and line layout with a factory-direct price within 24 hours.

Three things — board size, substrate, target daily output — and our engineers reply within 24 hours with the recommended KT model, complete layout drawing and factory-direct price.
