beccor melamine lamination hot press

Fully Automatic Melamine Lamination Hot Press Line

short cycle press machnie
As a leading melamine press machine manufacturer, Beccor specializes in providing state-of-the-art hydraulic systems designed for high-speed lamination. Our short cycle melamine press machine is engineered to bond melamine-impregnated paper onto MDF, particle board, and plywood with unmatched precision and durability directly from our factory to your production line.
short cycle press machnie

Engineered for Precision:

Melamine Lamination Hot Press Technical Specifications

High-efficiency lamination requires a flawless balance of tonnage, heat, and speed. Our heavy-duty melamine lamination hot press series delivers heavy-tonnage performance (from 1200T to 3200T+) coupled with an advanced Siemens PLC automation interface, ensuring high-speed cycles of over 120 sheets per hour. The following specifications detail how our premium frame stability, multi-cylinder synchronization, and energy-saving hydraulic systems can maximize your plant's ROI and particle board/MDF processing capacity.
    Model     HKT-1200   HKT-1400 HKT-1800 HKT-2000 HKT-2400 HKT-2800 HKT-3200
    Total Pressure of the Width(KN)    12000    14000    18000 20000 24000 28000 32000
    Diamter of Plunger Cylinder(mm)    φ320    φ340    φ340 φ360 φ400 φ420 φ450
    Num of Plunger Cylinder(pc)    6 6    8 8 8 8 8
Width Size 4’x8' 4’x9' 4’x10' 5’x8' 6’x8' 6’x9' 7’x9'

Looking for a custom melamine lamination hot press with specific dimensions or cylinder configurations? [Contact Beccor Engineering Team] for a free turnkey layout design

Why Choose Beccor as your Direct Melamine Lamination Hot Press Line

short cycle press machnie
Don't just take our word for it—watch our fully automatic Melamine lamination Hot Press line in action. See how Beccor redefines speed, structural rigidity, and surface perfection.
±1°C Precise Temp Control
Multi-channel thermal oil circuit guarantees uniform heating, completely eliminating board warping and surface bubbling.

4-Second Rapid Closing
High-speed hydraulic synchronization limits melamine resin pre-curing, ensuring a flawless synchronized or high-gloss finish.

10+ Years Heavy-Duty Lifespan
Monolithic CNC-machined solid steel frame (zero segmented welding) withstands continuous.

Beccor Series Melamine Lamination Hot Press Line

line

Beccor offers a comprehensive matrix of short-cycle lamination lines—from semi-automated setups to multi-functional intelligent mega-lines. Categorized from A to S series, each configuration is engineered to optimize your specific panel dimensions, throughput targets, and labor budget.

A & B Series | Flexible & Semi-Automatic Melamine Lamination Hot Press

Designed for growing panel processors and high-mix, low-volume furniture production, the Beccor A & B Series combines the heavy-duty hydraulic reliability of our larger presses with a highly flexible, space-saving footprint. These lines optimize manual or semi-automated material handling, allowing rapid recipe changeovers for different board thicknesses and textures. Featuring our signature ±1°C precise thermal oil heat distribution, the A & B series is the ultimate high-ROI gateway to premium melamine face lamination without the overhead of massive automation.
melamine press machine

Model A


melamine press machine

Model B



C & D Series: Fully Automatic Melamine Lamination Press Line

melamine press machines
Model C

melamine press machines
Model D

Engineered for high-volume factories requiring continuous, zero-defect melamine surface finishing. The C & D Series automates the entire process: double-sided panel brushing (essential to remove dust that causes melamine surface bubbles), automatic vacuum paper laying, and ultra-fast 4-second hydraulic closing. By rapidly sealing the press before the melamine resin can over-cure, these lines completely eliminate common edge dry-spots and guarantee an immaculate matte or textured finish on 100+ sheets per hour.
E Series: Smart Turnkey Melamine Lamination Mega-Line
line
Beccor's ultimate solution for total automation in large-scale melamine laminating plants. Managed by an integrated Siemens PLC system, the E Series synchronizes the melamine lamination hot press with automated pneumatic edge-trimming (to clean up excess melamine resin overflow) and diagnostic board-flipping stations for instant surface inspection. It delivers high-speed, continuous 24/7 output with maximum yield and minimal human labor.
melamine press machines
Model E

S Series: Premium Synchronized & High-Gloss Melamine Press Line
line
Specially developed for premium melamine lamination that demands flawless optical perfection. High-gloss melamine papers and Synchronized Texture (EIR) papers are highly sensitive to micro-deviations in pressure and alignment. The S Series features a heavy-duty monolithic CNC-machined frame and micro-second servo-hydraulic synchronization. It ensures the stainless steel texture plate locks onto the melamine decor paper's grain with zero shifting, eliminating surface stress-cracking and delivering premium 3D depth.
melamine press machines
Model S


Key Features of Our Melamine Lamination Hot Press

line
As a premier direct melamine lamination hot press manufacturer, Beccor engineers heavy-duty short cycle hot press lines designed to optimize your laminated panel production. Whether you run a high-output melamine faced chipboard (MFC) factory or a premium laminated MDF plant, discover the advanced technical features that make Beccor the most trusted short cycle press line supplier globally.
melamine press machine

Heavy-Duty Q345 Frame (Zero Deformation):
As a genuine melamine press machine manufacturer, BECCOR uses premium Q345 solid steel plates for our main frame. Engineered with Finite Element Analysis (FEA) and strict thermal stress-relief, it guarantees zero structural deformation under high tonnage (1200T–3200T) for decades.

Precision Hot Platen & Synchronous Heating:
Our melamine lamination hot press features advanced deep-hole drilled hot platens with a synchronous heating system. Controlling temperature tolerance within completely eliminates common laminating defects like white edges, bleeding, or surface blistering.

Eco-Friendly Servo Hydraulic System (30% Energy Savings)
Equipped with a high-efficiency servo-driven system, our press lines cut electricity consumption by up to 30% compared to traditional pumps. This advanced hydraulics also ensures faster pressure buildup and shorter dry cycle times.

Intelligent Siemens PLC Control Interface:
The entire **melamine lamination press line is integrated with an intuitive Siemens PLC system, allowing operators to monitor and adjust pressing time, pressure curves, and temperature parameters in real-time.

         Fully Automatic Melamine Lamination Hot Press Line

line
BECCOR provides complete, turnkey automated production lines from raw board feeding to finished product stacking, maximizing efficiency for your lamination Manufacturer
BECCOR Melamine Hot Press Frame Built with Premium Q345 Solid Steel

Heavy-Duty Machine Frame (Zero Deformation)

short cycle press machnie

Unlike trading companies, as a genuine melamine lamination hot press machine manufacturer, BECCOR uses high-grade, premium Q345 solid steel plates for our main frame structure. Every frame undergoes strict stress-relief machining and finite element analysis (FEA), guaranteeing zero structural deformation even under continuous high-tonnage operations (1200T to 3200T) for decades.

Horizontal Synchronize Camera System

melamine press machine

High-precision alignment conveyor line ,Automated double-sided melamine paper laying system. By integrating our advanced Horizontal Synchronize Camera System, the production line automatically detects, calibrates, and synchronizes the positions of the top and bottom decorative papers in real-time. This optical precision ensures a perfectly centered paper layout and eliminates any manual alignment errors before entering the press.

Horizontal Synchronize Camera System for Flawless Paper Alignment
Melamine Press Machine of Cooling Line to Ensure Ultimate Panel Flatness

Edge Trimming & Melamine Press Machine of Cooling Line:

short cycle press machnie

Automatic edge trimming machine (removes excess resin and paper overflow)Melamine lamination Hot Press Machine of Cooling Line. Instead of hot stacking which causes board warping, our specialized multi-station cooling line gradually reduces the internal thermal stress of the newly laminated panels, ensuring ultimate flatness and surface stability.


Moving and Stacking Machine

short cycle hot press line

The cured and cooled finished melamine boards are carefully handled by our heavy-duty Moving and Stacking Machine. Equipped with intelligent vacuum panel stackers and precise servo-driven positioning, this system ensures scratch-free movement and neat, high-density stacking, fully preparing the boards for storage or immediate transport.

Smart Moving and Stacking Machine for Scratch-Free Panel Handling

Know Detailed Information

Please Download Catalogue Here
melamine lamination hot press machine

               Benefits of                      Melamine Lamination Hot Press Machine

short cycle hot press line

  Frame Structure

The four corners of the stress concentration of the frame window of the press adopt the curve type optimized by the finite element method to reduce stress concentration and effectively ensure life.



  Oil Cylinder

Full automatic melamine lamination hot press machine Cylinders are made of special thick steel seamless tubes.Welding is done by robotic machines to control all welding parameters.CNC machining ensures tight minimum tolerances in operation to extend the life of the cylinder.

  Pressure Control

The full automatic melamine laminate hot press machine electronic equipment is controlled by a microprocessor, and the pressing parameters are automatically set by the press buttons.



  Digital Instrument

The digital instrument carries out independent electronic control on the pressure plate temperature and the digital pressure gauge controls the pressure level.



    Premium Accessories of       Melamine Lamination Hot Press Machine

short cycle hot press line
Beccor has been working as Automatic Melamine Press Machine manufacturer and supplier in China for more than 16 decades. With our years of experience in the industry, we can guarantee the production of high-quality Chinese short cycle hot press machine. Aside from manufacturing short cycle press machine in our own factory, we also offer customization and design services to our customers.Provide relative supporting equipment and Spare Parts such as :Hydraulic cylinder , PLC control system , Melamine lamination, MDF/Particle board , Stainless Steel Press plate.
board turnover machine for melamine lamination hot press machine
Board Turnover Machine
small power for melamine lamination hot press machine
Small Power
high power cooling system for for melamine lamination hot press machine
High Power Cooling System for Oil
Stainless steel press plate for melamine laminate hot press machine
Stainless Steel Press Plate
cushion pad for melamine lamination hot press machine
Cushion Pad
Smart Film Packing Machine for melamine press machine
Smart Film Packing Machine
Anti-counterfeit Code Printer for melamine press machine
Anti-counterfeit Code Printer

                    Intelligent Technology of                      Melamine Laminate Hot Press Machine

plywood hot press machine
Electrical Control System for melamine lamination hot press machine

1.Electrical Control System

The Siemens PLC for the Electrical Control System. use touch screen Output count, fault detection, password setting, hot-pressing process monitoring.



Siemens PLC for lamination hot press

2.Siemens PLC

Siemens PLC are known for their reliability, scalability, and advanced features. They are used in a wide range of industries, including manufacturing, energy, transportation, and building automation.

Siemens Servo Motor Control

3.Siemens Servo Motor Control

Siemens servo motor control is a system used for controlling the movement and positioning of servo motors. A servo motor is a type of motor to control the all system.

Servo pump system melamine press

4.Hydraulic Station

The servo pumping system for the hydraulic station can save 30% on electrical power consumption. Machine working more quite,More accurate control.Hydrulic stations are used to power hydraulic equipment such as cylinders, motors, and valves.

Our In-House Manufacturer Excellence
Short-Cycle-Press-Machine

Changzhou Beccor Intelligent Equipment Co., Ltd. is is a premier, engineering-driven melamine press machine manufacturer and global exporter specializing in complete, automatic melamine lamination hot press machine technology. Driven by continuous technical innovation and rich manufacturing expertise, we deliver high-end, heavy-duty melamine lamination hot press lines engineered to meet the highest international production standards.

Integrated Manufacturing Authority:
As a genuine source factory, BECCOR controls the entire production chain in-house—from raw steel processing and precision welding to heavy CNC machining, hydraulic integration, and rigorous testing. This allows us to provide global panel producers and furniture factories with flexible OEM/ODM customization and highly competitive direct factory pricing.

Certified Quality Control:
Our manufacturing facility operates strictly under ISO 9001 and CE automotive-grade quality management frameworks. From raw materials inspection to final pre-shipment trial runs, every process is fully documented to ensure our melamine lamination press lines deliver superior structural alignment, robust pressure retention, and 24/7 continuous high-speed stability.



Global Service & Turnkey Support:
Equipped with professional heavy-overhead handling systems and customized international packaging lines, BECCOR guarantees safe global logistics. Backed by our experienced team of on-site commissioning engineers, we provide seamless installation, localized operator training, and lifetime spare parts support worldwide.

Cooperation Process
line
melamine press machine

Step.1
Send your inquiry

Step.2
Quote price
melamine lamination hot press

Step.3
Negotiate price and lead time
melamine lamination hot press

Step.4
Sign the contract

Step.5
Payment and production

Step.6
Inspection

Step.7
Shipment
Service Process of Melamine Press Machine
short cycle press machnie
You can expect sound service from BECCOR dealer service technicians when and where you need it most. From our application insight to our confidence at the counter, BECCOR will work to answer your requests with expert care and promptness. We know your machines better than anyone. Dependability matters when machines need service. We take pride in resolving issues the first time, helping you maximize your productivity.
  • 1
    Speciality SERVICES
    To provide information, market research and forecasting, provide consultancy, offers a variety of convenience and market service and so on.Assist the clients prepare enable our products to maximize meet customer needs, but also to maximize customer investment play the comprehensive economic benefits.​​​​​​​
  • 2
    Quality SERVICES
    The Service Technician Certification program from BECCOR is a mark of excellence.Our technicians can service your machine with expertise, helping optimize performance. Ask your BECCOR dealer about what other makes and models of machines, in addition to those from BECCOR, they service locally
  • 3
    Extra Mile PRICING
    In many locations, BECCOR technicians can come to you in the field with mobile service trucks pre-stocked with popular parts, to save time and provide parts or service on the spot, to help keep you and your equipment running. When it comes to premium service, BECCOR goes the extra mile.​​​​​​​

Customer Case

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
         Global Projects of               Melamine Lamination Hot Press Machine
short cycle press machnie
As a premium global melamine press machine manufacturer, BECCOR has successfully delivered, installed, and commissioned high-performance short-cycle lamination lines for panel producers and furniture factories worldwide. Our project footprints span across key industrial markets, proving our engineering reliability under diverse production environments:

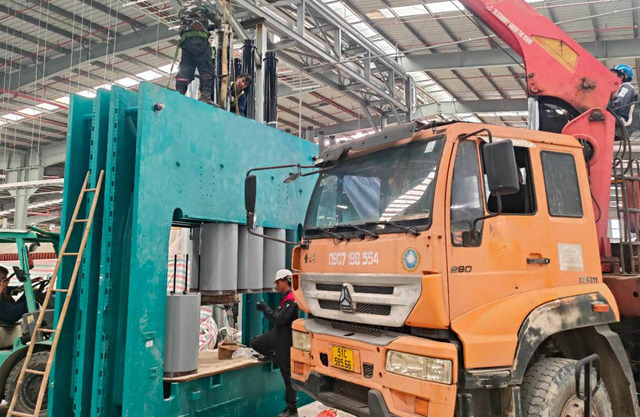

Project 1: Fully Automatic 2400T Press Line in Vietnam
Substrate & Application: High-density MDF and particle board lamination for local top-tier furniture brands.
Core Configuration: Turnkey automated line equipped with our **Horizontal Synchronize Camera System for flawless paper positioning and high-speed operation.

Project 2: Heavy-Duty 3200T Melamine Lamination Hot Press in Saudi Arabia
Substrate & Application: Large-size synchronized 3D textured wood grain panels and door skin lamination.
Core Configuration: Custom high-tonnage heavy frame with original Rexroth hydraulic valves and precise temperature control hot platens.

Project 3: Eco-Friendly Servo-Driven 1600T Press Line in Turkey
Substrate & Application: Standard 4'x8' melamine board production for fast-growing flooring and cabinet markets.
Core Configuration: Advanced servo hydraulic pump system achieving 30% energy savings** and optimized dry cycle times.

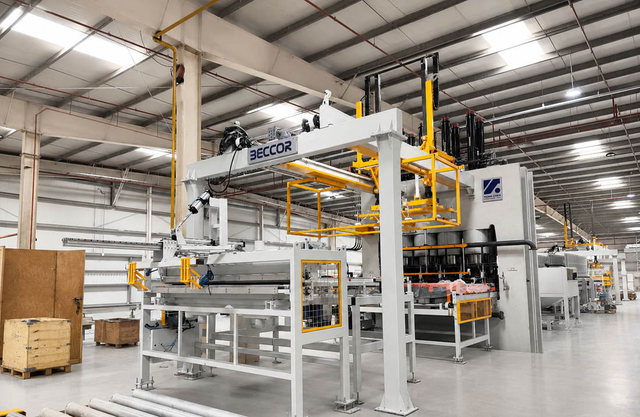

Project 4: Multi-Station Lamination Line with Advanced Cooling in Algeria
Substrate & Application: Continuous high-speed plywood and chipboard lamination with zero warping.
Core Configuration: Integrated with our specialized Melamine Press Machine of Cooling Line and high-density **Moving and Stacking Machine for scratch-free automated handling.
Our Corporate Clulture
short cycle press machnie
melamine press machine
press line
FAQ of Professional Melamine Press Machine Manufacturer

  • What factors should be considered when selecting a full automatic short cycle press line?

    Some factors to consider when selecting a full automatic short cycle press line include the required production capacity, the size and thickness of the panels to be produced, the types of materials and laminates to be used, and the level of automation and customization required. Other factors to consider may include the cost of the line, maintenance requirements, and availability of technical support and training.

  • What materials can be used in a full automatic short cycle press line?

    A full automatic short cycle press line can be used to laminate a variety of materials, including particleboard, MDF, HDF, plywood, and other wood-based substrates. Additionally, it can be used to laminate decorative papers, films, and other materials onto these substrates to create finished panels with various colors, patterns, and textures.

  • How does a full automatic short cycle press line work?

    The process begins with loading the substrate onto the conveyor belt, which transports it through the pre-heating machine to prepare it for lamination. The decorative paper or film is then fed into the short cycle press, where it is pressed onto the substrate using heat and pressure. The finished panel is then cooled and sized before being trimmed and sanded to the desired shape and size.

  • What types of machines are included in a full automatic short cycle press line?

    A full automatic short cycle press line typically includes a series of machines, such as a loading and unloading system, pre-heating machine, short cycle press, cooling and sizing system, and trimming and sanding machine. Some lines may also include additional equipment, such as a dust removal system or an automatic stacking and packaging system.

  • What are the advantages of using a full automatic short cycle press line?

    The advantages of using a full automatic short cycle press line include high efficiency, consistent quality, reduced labor costs, and increased production capacity. By automating the manufacturing process, the line can operate continuously and produce panels at a faster rate than manual labor, resulting in increased productivity and profitability.

  • What is a Full Automatic Short Cycle Press Line?

    A full automatic short cycle press line is a production line that consists of a series of machines and equipment used to manufacture laminated panels, such as furniture boards, flooring, and wall panels. The process involves pressing a decorative paper or film onto a substrate using heat and pressure, resulting in a finished panel that is both durable and visually appealing.
